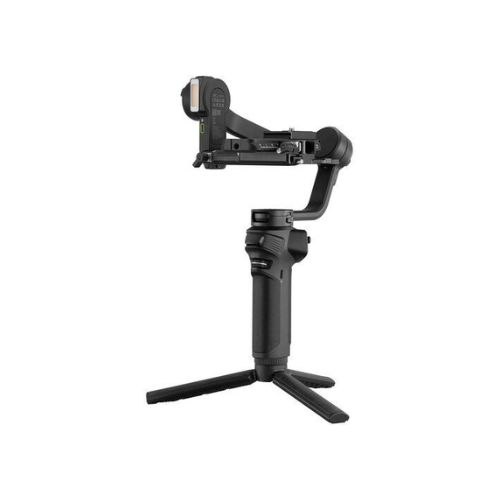

ZHIYUN WEEBILL 3S 3-AXIS HANDHELD GIMBAL FOR CAMERAS
ZHIYUN WEEBILL 3S 3-AXIS HANDHELD GIMBAL FOR CAMERAS - Image 2
ZHIYUN WEEBILL 3S 3-AXIS HANDHELD GIMBAL FOR CAMERAS - Image 3
ZHIYUN WEEBILL 3S 3-AXIS HANDHELD GIMBAL FOR CAMERAS - Image 4
ZHIYUN WEEBILL 3S 3-AXIS HANDHELD GIMBAL FOR CAMERAS - Image 5

ZHIYUN WEEBILL 3S 3-AXIS HANDHELD GIMBAL FOR CAMERAS

.د.ب 89.990 Inclusive of Taxes

Key Features
  • Optimized 2.5 Sling Structure
  • Integrated 1000 Lux Fill Light
  • Up to 11.5-Hour Runtime
  • 0.96″ Touchscreen, Bluetooth Shutter
  • Quick Release, Landscape/Portrait Switch
  • Tripod Extension
  • Control Wheel, Trigger Button

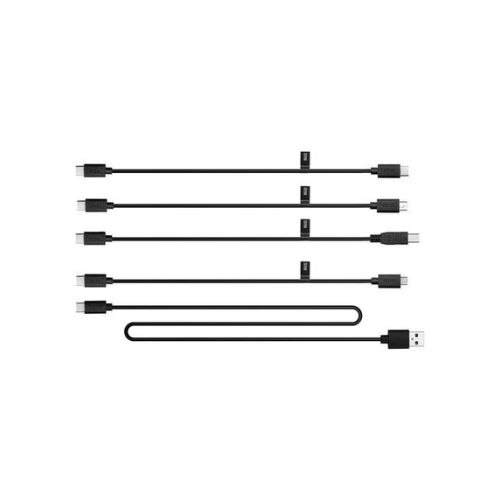

  • Various Control Cables for DSLR Cameras
  • Use with TransMount Image Transmission
  • 2.4 GHz Wi-Fi for App Control

Out of stock

SKU: AIBT-5622 Category: Tags: , , , , ,

Description

Key Specs
Grip Design
Single Handgrip (Slanted)
Number of Axes
3-Axis (Pitch (Tilt), Roll, Yaw (Pan))
Wireless Frequency
2.4 GHz
Wireless Protocol
Bluetooth 5.0
Mobile App Compatible
Yes: Android & iOS
App Name: ZY Play
Functionality: Adjust Settings, Remote Control
*As of January, 2023: Check with manufacturer for the most up-to-date compatibility
Mounting
1 x 1/4″-20 Female
1 x 1/4″-20 Male
Weight
2.4 lb / 1.1 kg
Gimbal
Number of Axes
3-Axis (Pitch (Tilt), Roll, Yaw (Pan))
Rotation Range
Mechanical Range
Yaw (Pan): 360° Unlimited
Pitch (Tilt): 310° (-130 to 180°)
Roll: 340° (-280 to 60°)
Controllable Range
Yaw (Pan): 360°
Pitch (Tilt): 250° (-90 to 160°)
Roll: 65° (-30 to 35°)
Stabilization Accuracy
±0.01 to 0.04° (Motionless)
±0.05 to 0.3° (Motion)
Compatibility
Camera Control
On Compatible Models (See Full Compatibility List)
Camera Mounting Screw
1 x 1/4″-20 Male
Connectivity
Inputs/Outputs
1 x USB-C (1.6 A 9 VDC Power) Input
1 x USB-C (1 A 5 VDC Power) Output
Wireless Frequency
2.4 GHz
Wireless Protocol
Bluetooth 5.0
Mobile App Compatible
Yes: Android & iOS
App Name: ZY Play
Functionality: Adjust Settings, Remote Control
*As of January, 2023: Check with manufacturer for the most up-to-date compatibility
Battery
Battery Type
2 x 18650
Battery Capacity
2600 mAh
Battery Runtime
11.5 Hours
Battery Charging Time
2 Hours
Battery Chemistry
Lithium-Ion
Power
Operating Voltage
6.5 to 8.4 VDC
Operating Current
150 to 5300 mA
General
Display Type
Fixed Touchscreen OLED
Mounting
1 x 1/4″-20 Female
1 x 1/4″-20 Male
Dimensions
12 x 8.3 x 2.9″ / 305 x 210 x 72.5 mm (Folded)
12.1 x 7.1 x 6.36″ / 306.4 x 181.4 x 161.63 mm (without Tripod)
Weight
2.4 lb / 1.1 kg
Packaging Info
Package Weight
4.195 lb
Box Dimensions (LxWxH)
14.2 x 10.8 x 4.7″
